6 to 12 inch one piece e-drum pad
In this project, I have designed to be able to assemble using the common bolt and nut as much as possible. The main parts are as follows.

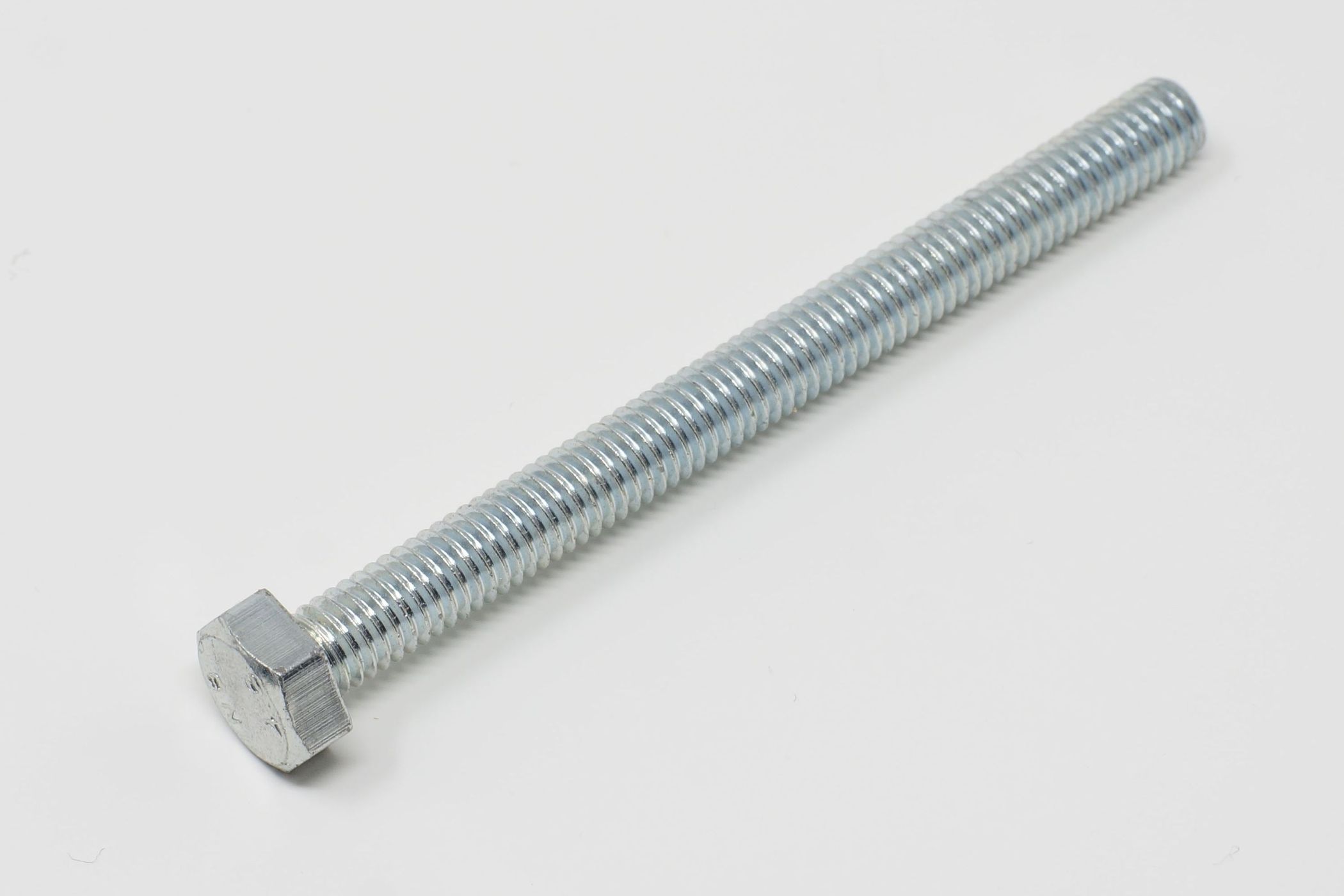

Used to fix the head. There is no problem if the length is 70 mm or more.
If it is longer than 70mm, there is no problem.
It is used to fix the head and to attach the mount parts to the pad.

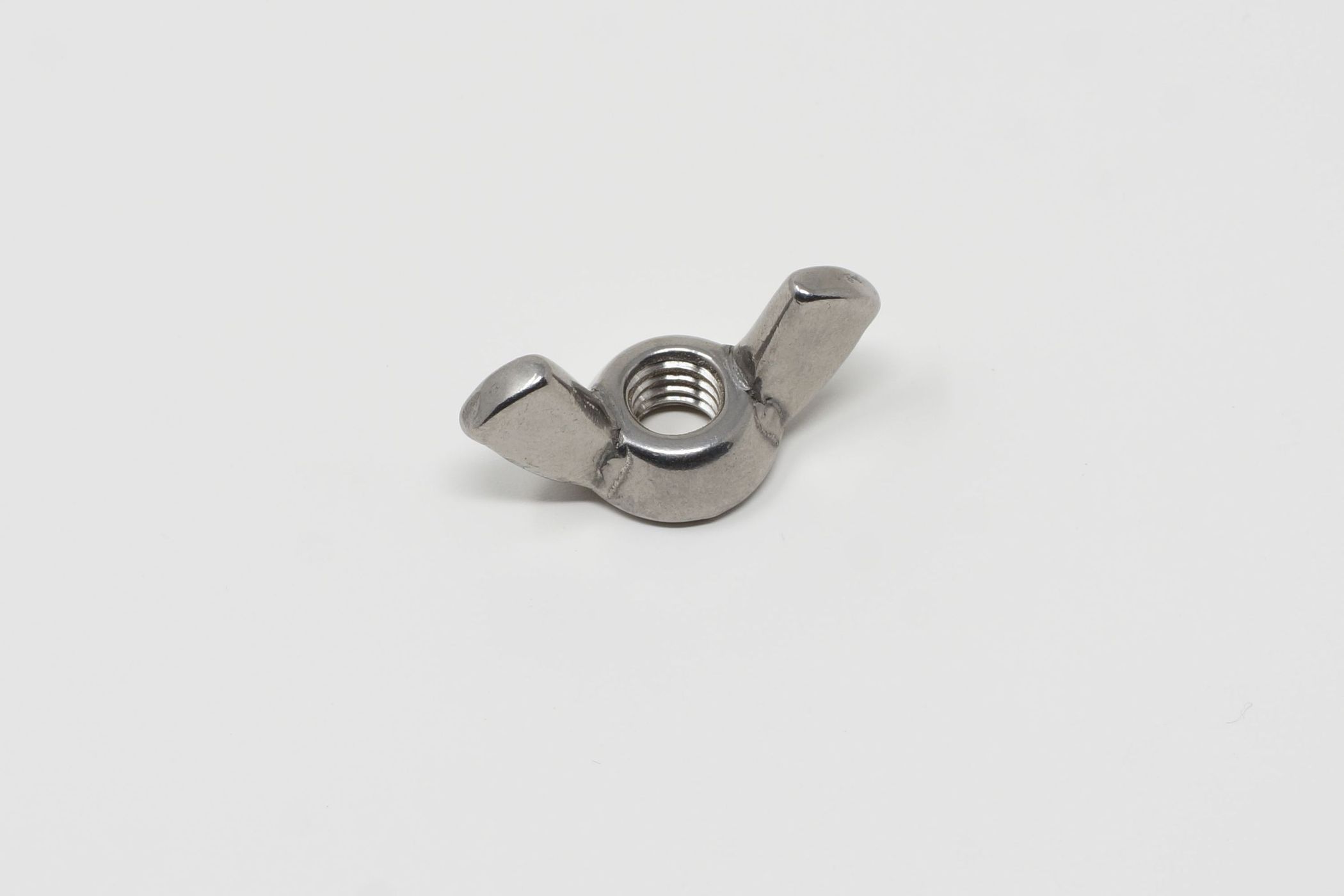

Used when attaching the mount parts to the tom holder. It can also be used to fix the head.

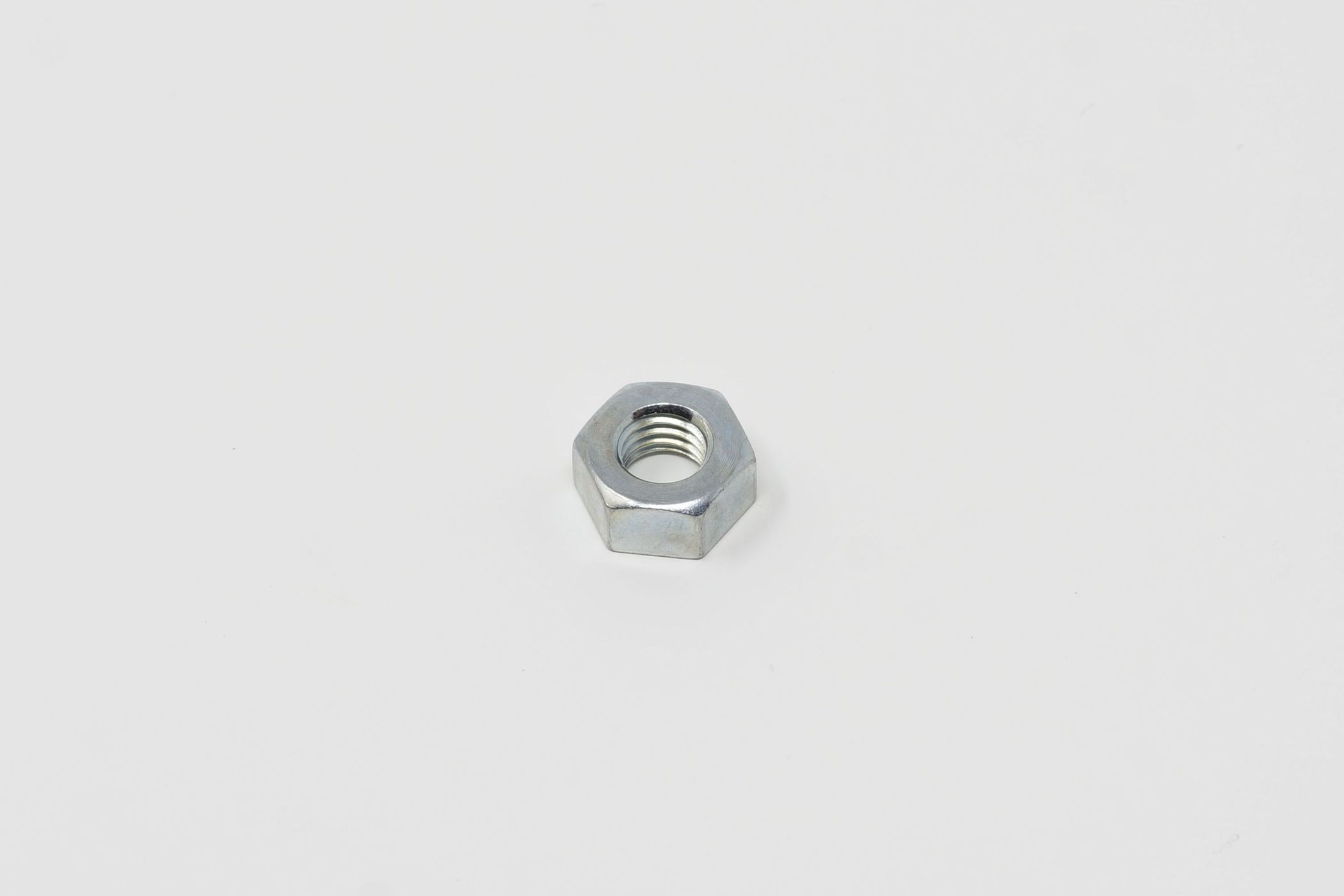

Used to assemble the rim. The length of 12 mm is the best. If it is too long it will interfere with the
head.
Fixing is possible even if it is not a hexagonal head.

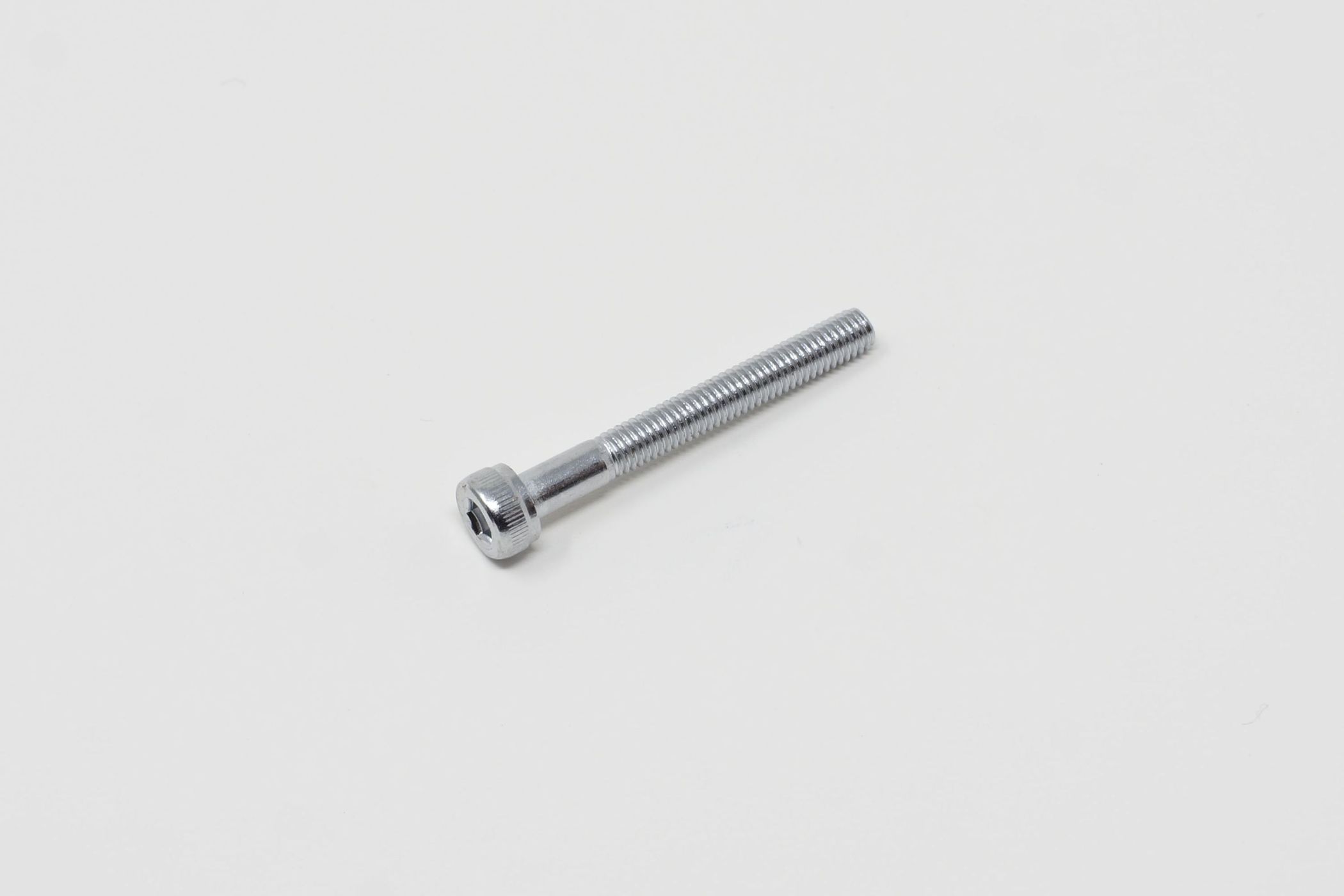

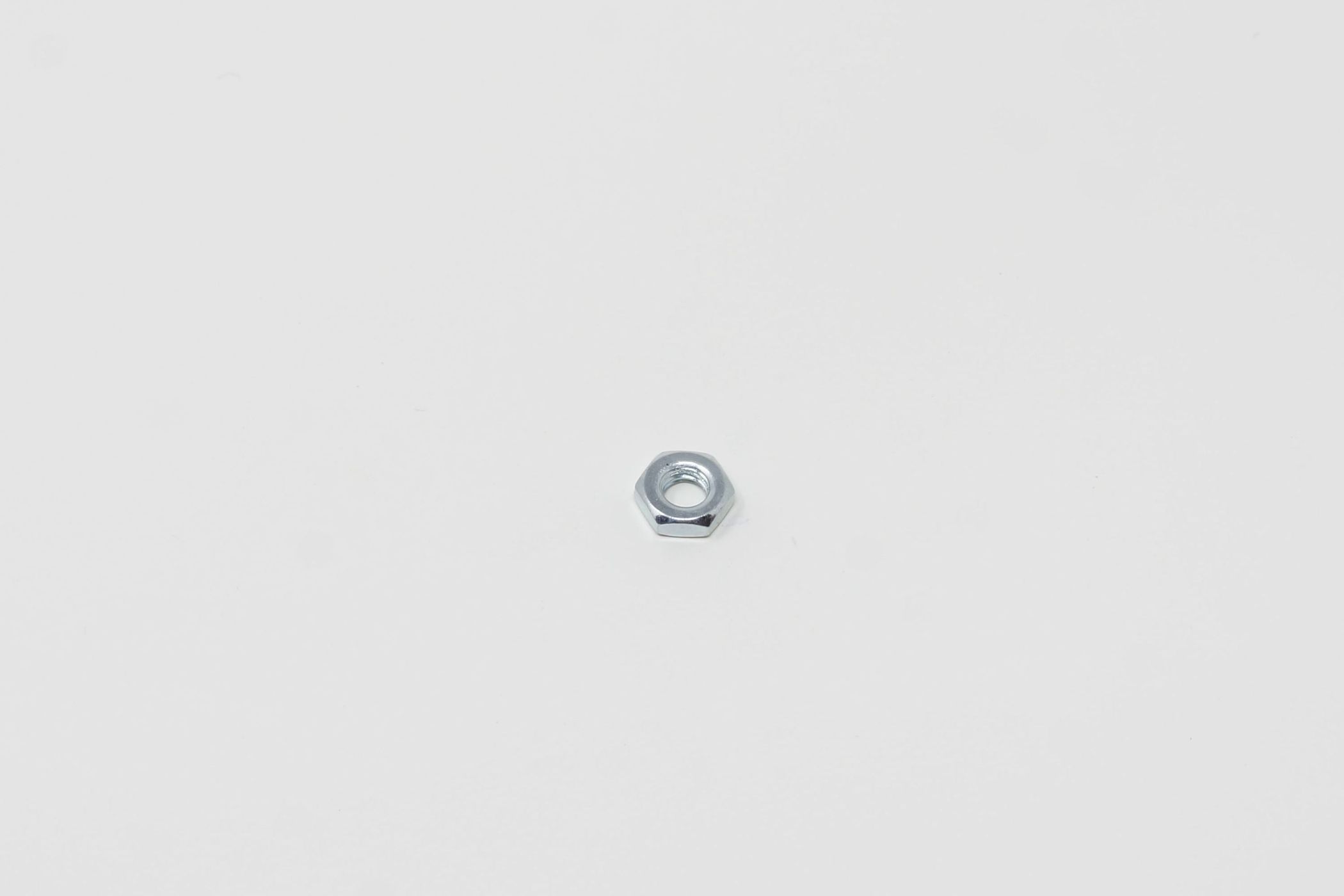

Use with socket head bolt.
Used to fix the sensor plate.
There is no problem even if it is long, but if it is too long, it will interfere with the head. The optimum
length depends on the height of the trigger cone.

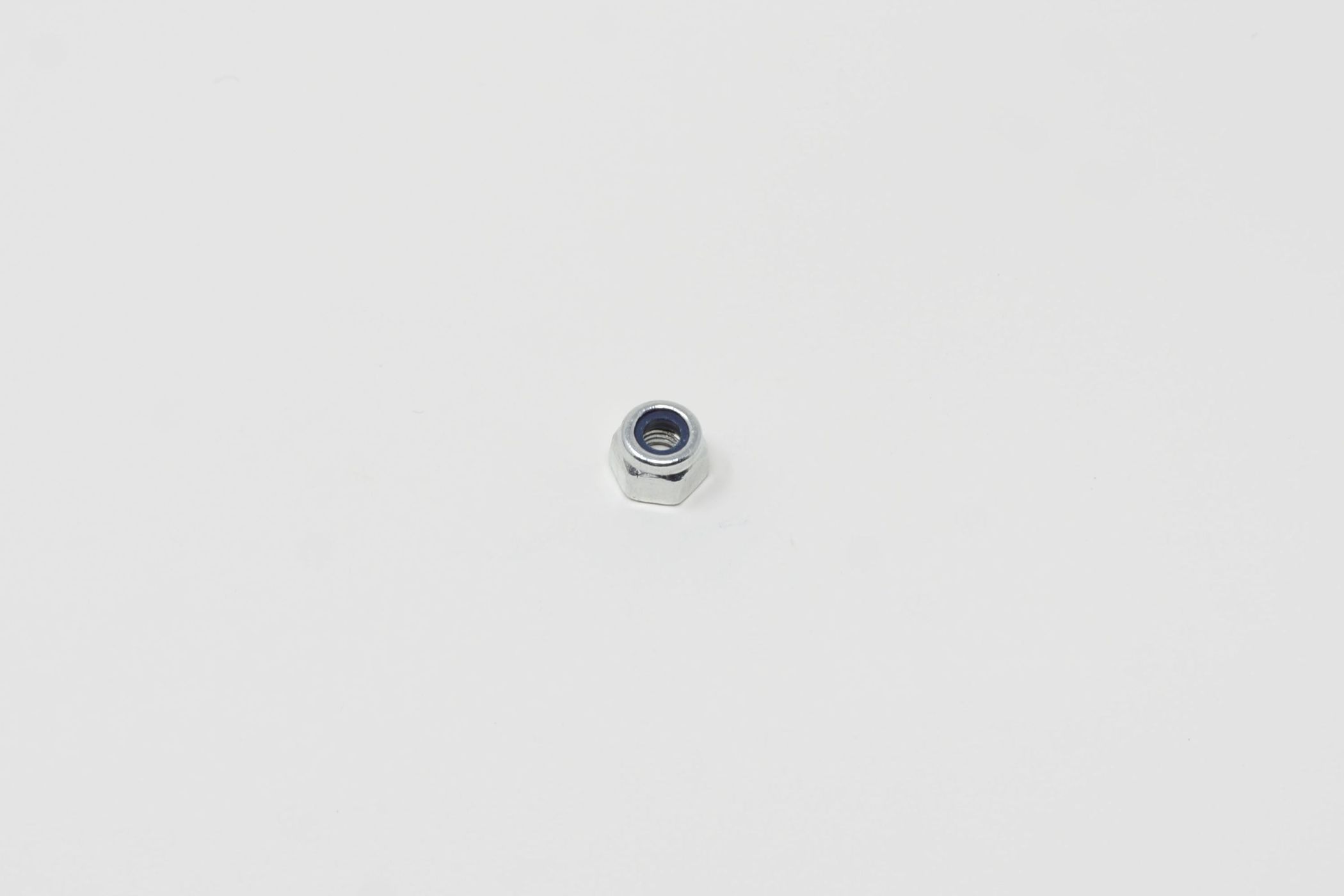

Used to fix the sensor plate.
Item | Number |
---|---|
M6-70mm Bolt | 10 |
M6 Nut | 10 |
M3-12mm Hexgone Head Bolt | 20 |
M3 Nut | 20 |
M3-30mm Hexgone Head Bolt | 5 |
M3 Nylon Nut | 15 |
Item | Number |
---|---|
M6-70mm Bolt | 8 |
M6 Nut | 8 |
M3-12mm Hexgone Head Bolt | 16 |
M3 Nut | 16 |
M3-30mm Hexgone Head Bolt | 4 |
M3 Nylon Nut | 12 |
Item | Number |
---|---|
M6-70mm Bolt | 6 |
M6 Nut | 6 |
M3-12mm Hexgone Head Bolt | 12 |
M3 Nut | 12 |
M3-25mm Hexgone Head Bolt | 3 |
M3 Nylon Nut | 9 |
Item | Number |
---|---|
M6-70mm Bolt | 4 |
M6 Nut | 4 |
M3-12mm Hexgone Head Bolt | 8 |
M3 Nut | 8 |
M3-25mm Hexgone Head Bolt | 0 |
M3 Nylon Nut | 0 |
